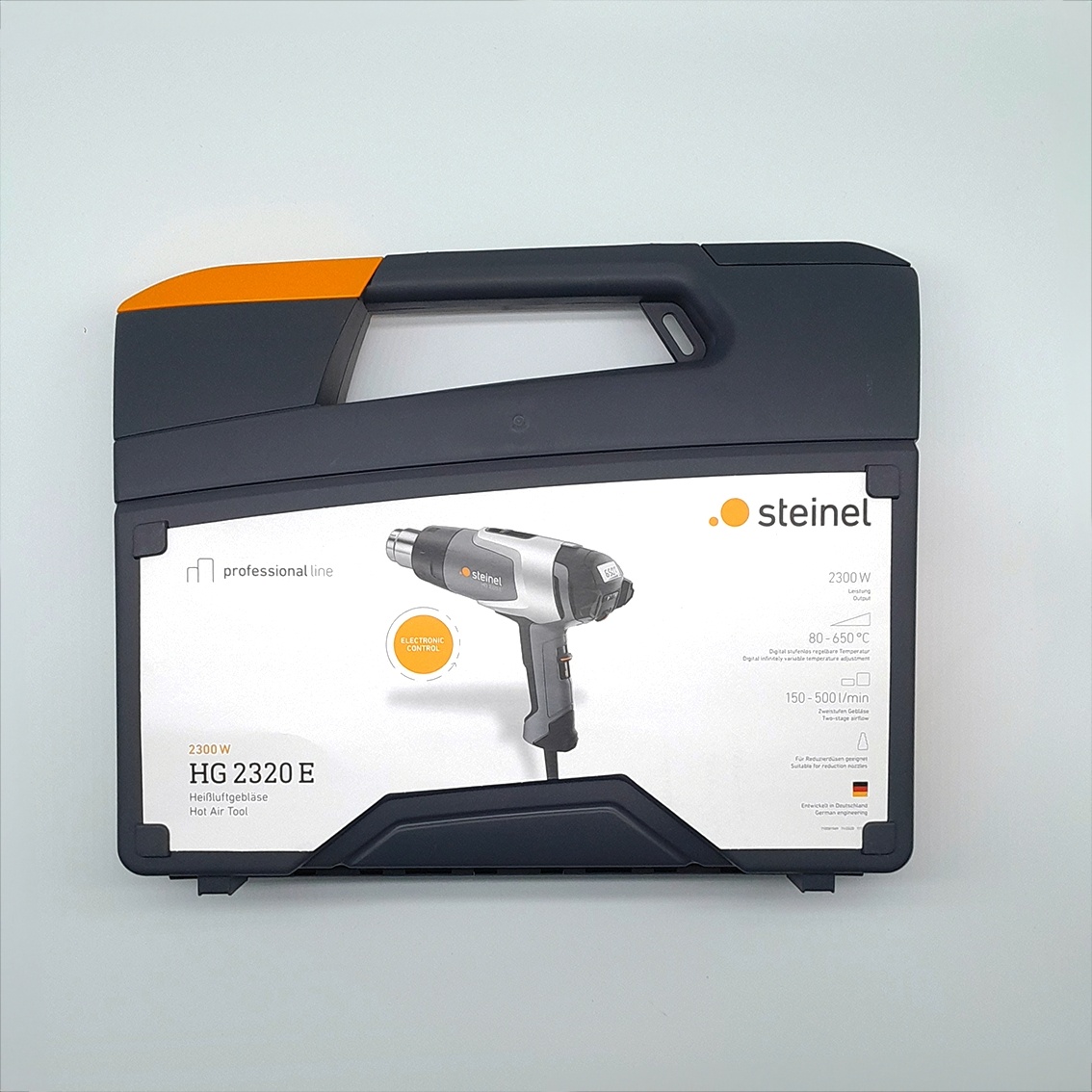

Heat Gun HG 2320 E in a case with accessories

Precision digital control.

STEINEL heat gun HG 2320 E

The digital precision tool for temperature-critical materials. The 2300-W HG 2320 E hot air tool is fitted with a 3 m cable, making it perfectly equipped for jobs that demand greater freedom of movement. The ceramic heaters temperature can be infinitely varied over a range of 80 °C - 650 °C at the thumbwheel. Integrated thermal cut-out eliminates the risk of overheating. Airflow can be controlled in 2 stages from 150 – 500 l/min. At just 1030 g (without power cord), the HG 2320 E hot air tool is one of the lightweights in its performance category.

Features: 2300-watt brushless motor, rated for 1,000 hours of operation. Digital temperature adjustment by joystick. LCD display showing temperature in 10 °C steps, includes heat build-up warning function and residual-heat indicator. The optimised weight balance and ergonomically shaped handle with soft inlay permit fatigue-free work. Non-slip standing surface and hanger.

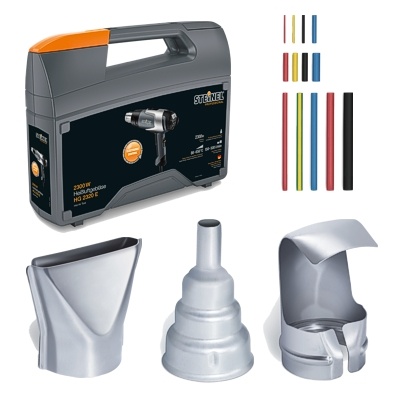

Includes: supplied in a case complete with 50 mm surface nozzle, reflector nozzle, 9 mm reduction nozzle and shrink tubings

Service-friendly: the power cord can be changed without opening the enclosure

Technical specifications electonically controlled hot air gun HG 2320 E Case

Nominal power consumption 2300 W Temperature 80-650 °C With temperature control Yes With temperature indication Yes Air volume 500 l/min Air flow control Positions Weight of machine 0.755 kg Dimensions (l x w x h) 253 x 86.5 x 200 mm Voltage P00248v001 Min. frequency 50 Hz Max. frequency 60 Hz Power consumption 2300 W Min. temperature range 80 °C Max. temperature range 650 °C Temperature regulation Yes Temperature setting digitally, infinitely variable by joystick Min. airflow rate 150 l/min Max. airflow rate 500 l/min Airflow regulation Continuously variable Number of stages 2 Motor Brush motor Motor life 1000 hrs. Heating element Ceramic Protection class (without earth terminal) II Thermostat Yes Thermal cut-out Yes Power cord length 3 m Weight 0.755 kg Model Case
